CANchecked MFD28 for Toyota GT86 / Subaru BRZ

MFD28 Gen2 transforms your air vent into a smart display with features you won't want to be without. CANchecked's displays are designed for easy installation by anyone.

Key Features

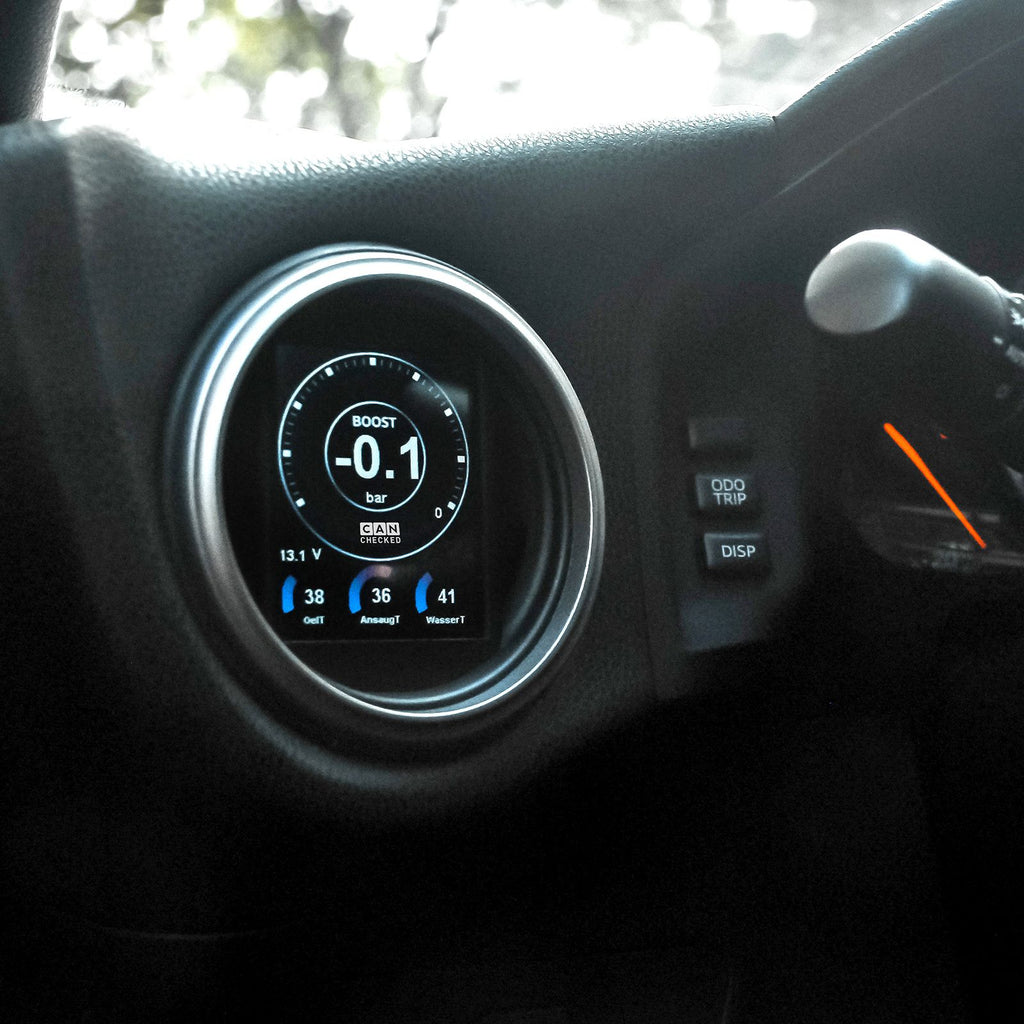

• Perfect integration: The vehicle-specific bezel still allows airflow past the display.
• CAN bus: Reading out in-depth vehicle data using manufacturer diagnostic tools
• Gear indicator: Directly via CAN bus or calculated from speed and RPM
• Touchscreen: Navigate through the pages using intuitive swipe gestures.
• Personalization: Design your own pages, add your own images or a custom startup animation.
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
• CAN Switching: Use your display as a keypad and send your own CAN messages to the bus.
• Customizable Alarms: Individual alerts can be easily configured and activated. For example, receive a major warning message when the exhaust temperature exceeds 900 degrees.
• Logging: Log and save your data to the internal SD card for later analysis.

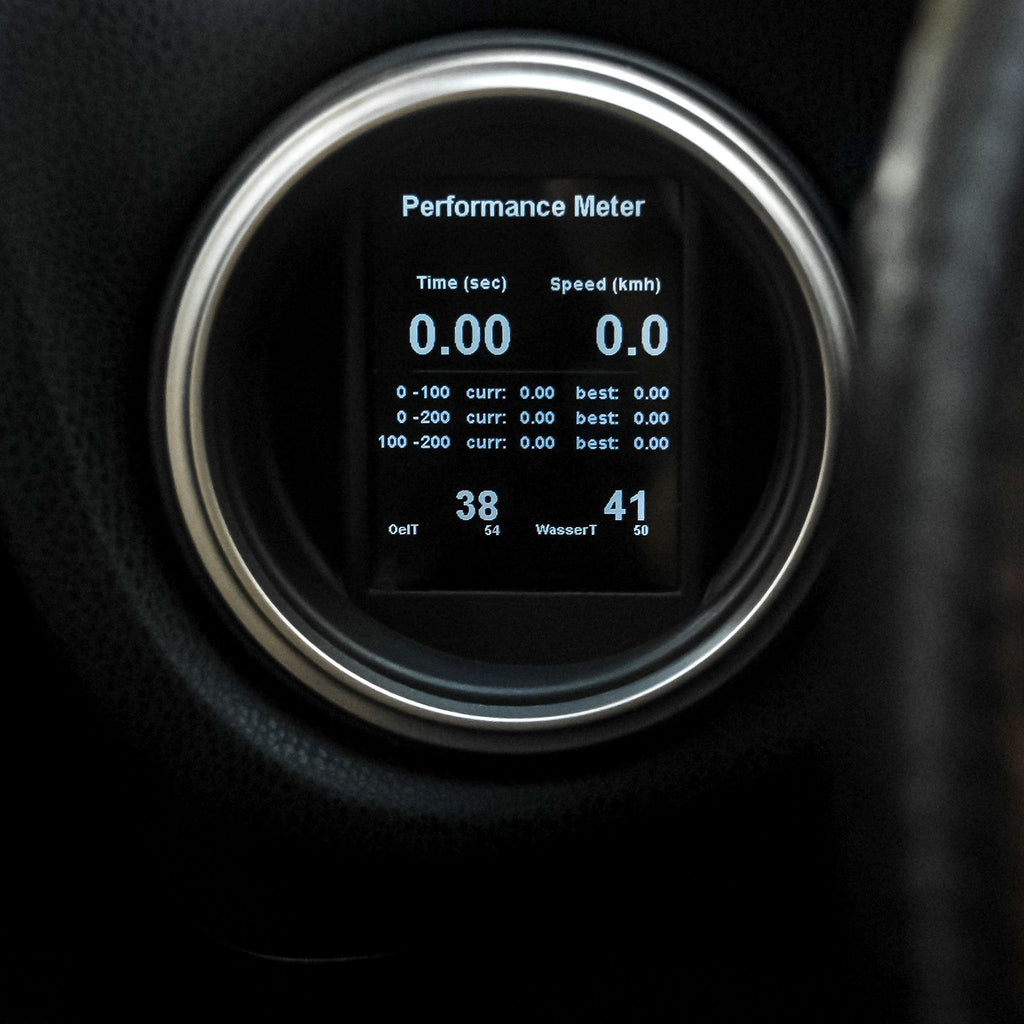

• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
• DTC*: Read and clear fault codes from the engine control unit, transmission, ABS and all-wheel drive
• Dimming*: Your display dims automatically along with the instrument panel.

Different views

Configure your own page or choose from various pre-made views:

• The display comes with predefined sample pages.
• Creating your own pages is possible and encouraged.
• Up to ten pages possible
• 20 different widget types (e.g. sensor value, analog pointer, YT diagram, tachometer bar, circular display, vertical/horizontal bar)
• Widgets are scalable in size and can be positioned using drag and drop.
• Widget colors are fully adjustable.
• Up to 64 widgets per page

Display Setup Software

You can fully customize your display to your needs. The integrated log viewer allows you to download and view log files. A CAN logger is also integrated. The core feature is the integrated TRI editor, which lets you configure sensors (whether CAN bus or internal): Assign minimum/maximum values for warnings and rename your sensors.

Supported Parameters

Your display comes standard with pre-configured TRI/TRX files. These files define all the sensors that will be queried. These sensors vary from motor to motor. Here's an excerpt of what's possible:

Temperatures - Exhaust gas temperature, coolant temperature, oil temperature, intake air temperature, outside temperature, fuel temperature, DSG temperature

Press - Boost pressure, ambient pressure, fuel pressure, lift pump pressure, actual/target rail pressure

Lambda/mixture - Lambda value, injection time, short-term lambda adaptation, long-term lambda adaptation

Miscellaneous - Engine speed, air mass, vehicle speed, throttle valve angle, total ignition timing, ignition timing retard per cylinder, N75 duty cycle in %, terminal 30 voltage, torque, gear, diesel-specific values

If any values are missing, you can add them later.

What's in the box

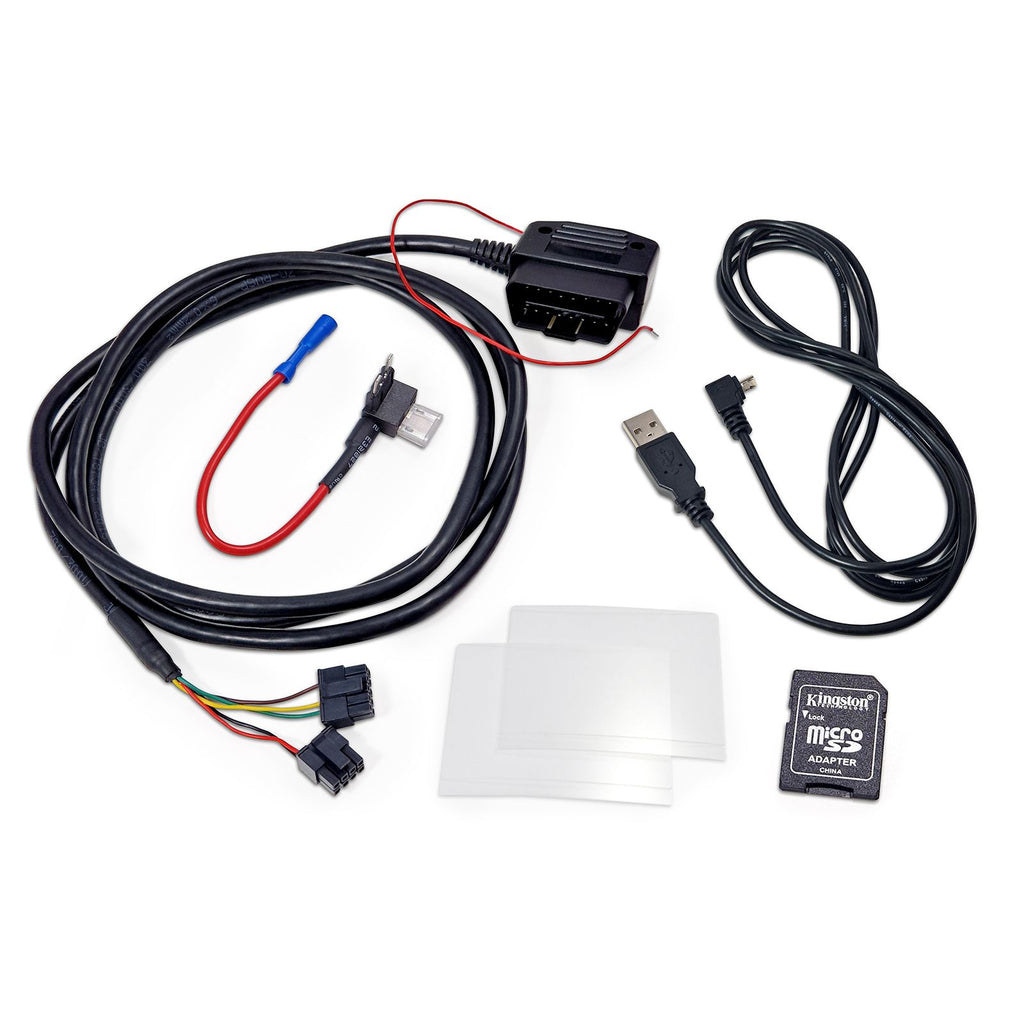

Each delivery includes:

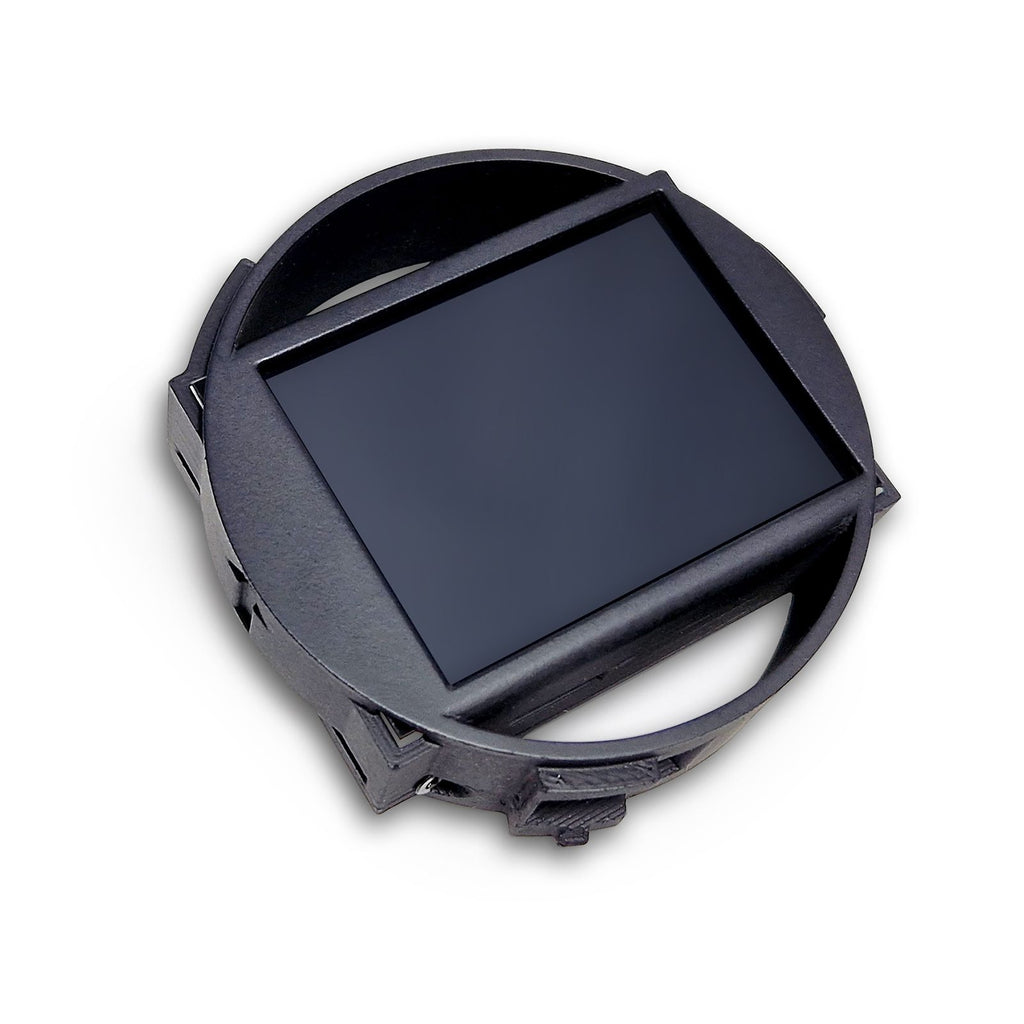

• MFD28 Gen2 data display integrated into the ventilation unit for LHD vehicles
• Vehicle-specific connection cable
• Quickstart Guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Screen protector (to prevent reflections)

Inputs & Expansions

Any sensor can be connected via the four analog inputs, both linear 0-5V and NTC sensors.

• AIN1: Temperature sensor (NTC01)
• AIN2: Converter for exhaust gas temperature probe type K (TCC01)
• AIN3: Pressure sensor 0-10 bar (FLP01)
• AIN4: Boost pressure sensor 0-5.5 bar absolute (BST10)

You can use our pre-assembled AIN cable harness for the connection.

In addition to the analog sensors, you can also connect our external shift light with 8 LEDs. This can flash in different colors, and the rev limits and colors can be configured directly on the display.

You connect the ethanol sensor directly to the display. You need a pull-up resistor (10K) between 5V and the signal. Afterwards, you can view and log the ethanol content and temperature directly on the display.
